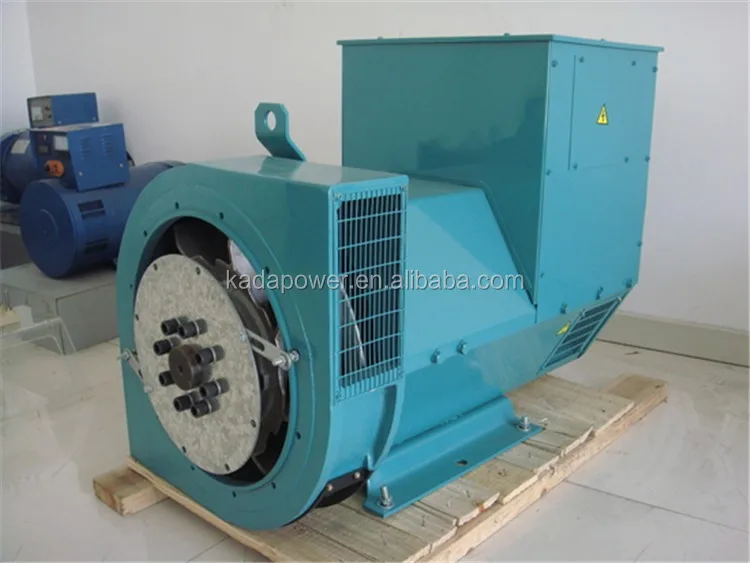

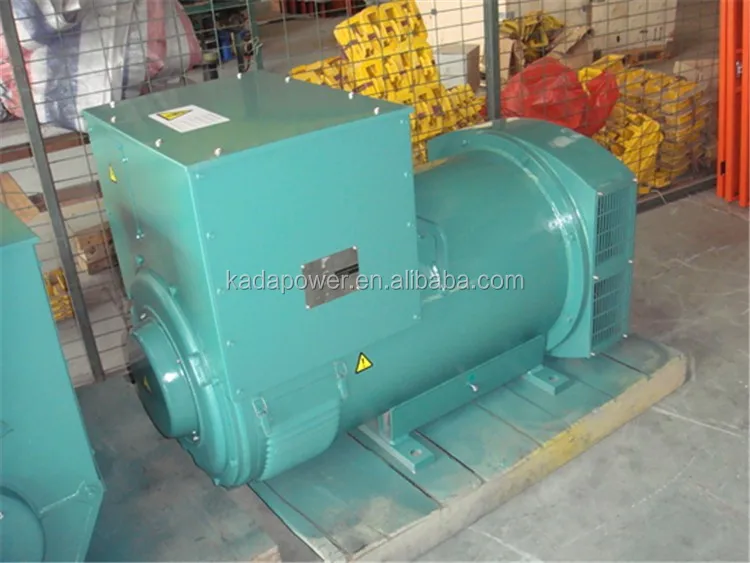

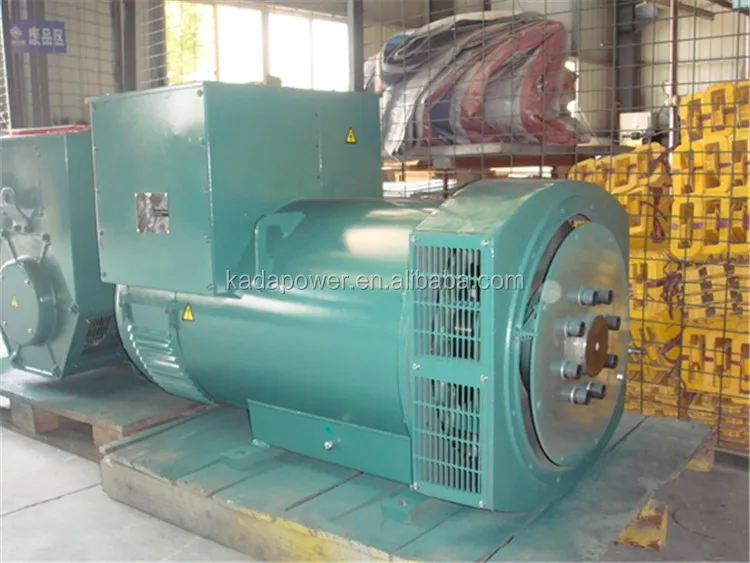

STAMFORD ac single/double bearing brushless 500kw alternator

FOB Reference Price:Get Latest Price
$3,700.00 - $4,700.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
KADA
Model Number:
STAMFORD
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60hz
Rated Power:
500kw
Rated Voltage:
120v-690v
Rated Current:
1-10000A
Name plate:
As your choice
Warranty:
1 year
Color:
Optional
Insulation class:
H class
Protection class:
IP21
Control:
Good AVR
Material:
Cold roll stator & 100% copper
Certificate:
CE/ISO&as per your country
Ajusting rate of intant voltage:
>=-1%~<=+20%
Ajusting rate of stable voltage:
+-0.5%
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
500kw alternator:Plywood case or standard export packing
Port
Fuzhou
Lead Time :
Shipped in 25 days after payment

STAMFORD ac single/double bearing brushless 500kw alternator

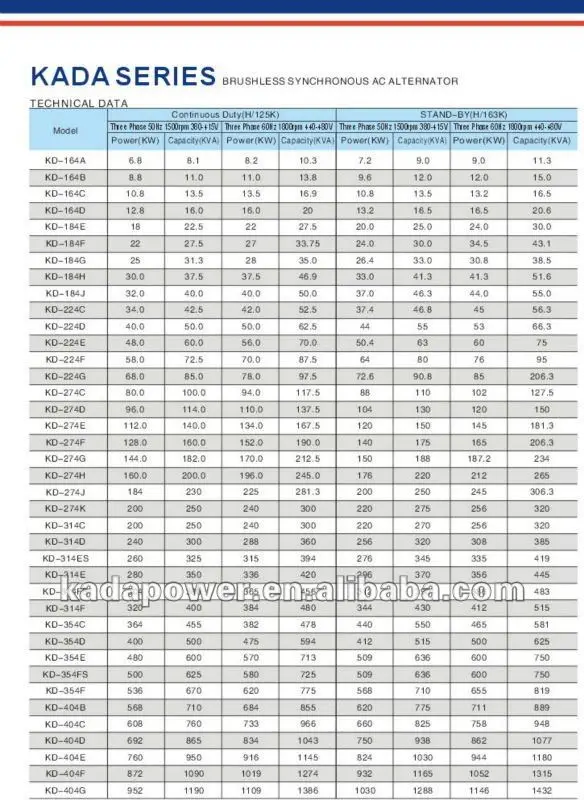

Stamford Technical Data



635086806_052

Feature

  KADA series single/three phase AC synchronous brushless generator reaches revelant standards of IEC and GB755. It is combined with athe diesel engine into the diesel generating set movable power plant, extensively used in the locations where need the power frequency power supply like land, universal enterprise, residential area and so on.

1.Coupled with any permanent magnetic generators, providing invariable excitation on all occasions.

2.Comply with the most common standard in term of GB755, IEC60034, BS5000, VDE0530, and CSAC22.2-100.

3.12-end reconnects able winding terminals to get different voltages.

4.Standard "H" insulation class.

5.Convenient installation and maintenance for leas-end rotated diodes and adapter connected bolts.

6.Standard sealed maintenance-free bearings.

7.Standard IP21/23 protection, optional severe environment protection.



Detailed product description:

1.Rated output: 500KW/625KVA
2.Rated voltage: 120-690V
3.Rated frequency: 50/60Hz
4.Rated speed: 1,500/1,800rpm
5.Single/Three-phase four-wire
6.Protection: IP21-IP23

7.Insulation: Class H
8.Standard: International Electrician Committee Command Standard IEC34, International Standardization Organization Command Standard ISO8528 ,NEMA standard
9.Engine can be connected with steel or flexible materials
10.Steel frame cast-iron cover
11.Excellent silicon steel chip
12.Imports all bearing
